This model (The LK9750 DUO PRO) is the very latest upgrade to the LK 9700 - with new Sony Sensors and FULL 1080p both front (30fps) and 1080p rear (24fps) - this summarises the difference between the 9700 (old version) and the 9750 (new version)
More details of the new model are below. Now in 2016 with a THREE YEAR WARRANTY! |
|
|
|
|
|
The LUKAS LK-9750 DUO Professional is outstanding class technology within the car camera market, incorporating the top specification SONY IMX322 pixel Full TRUE HD image sensor. The unit produces some of the finest quality video available from a windscreen mounted camera - even when lighting conditions leave a lot to be desired.
Scroll down to read more about the stunning range of features this camera has to offer. |
|
|
|
|
|
|
|
|
Voice Guidance - information about the current status of the camera is displayed on the rear screen and some conditions are related to the user audibly - know what the LK 9750 is doing without even looking. |
|
8 Languages (Including English) are supported on the voice guidance system. |
|
Automatic Exposure - where the light coming into the camera is too bright or too dark, the camera adjusts its exposure setting in realtime to compensate to provide the best image possible. |
|
Rear Camera - the slimline LK 9750 rear mounted camera unit is compact and therefore discreet. At only 5cm long and 2.6cm wide it is one of the smallest cameras available and can easily be mounted in a variety of convenient locations. |
|
The high powered and rapid response GPS + Glonass hardware is built-in - giving realtime GPS data which is recorded alongside the video to be used on the Lukas Player in conjunction with Google maps (a home or office internet connection is required for this). |
|
To avoid battery failures the Lukas LK 9750 has a super capacitor built in. This provides power in order to close down the camera in the correct boot down sequence, saving any valuable data to memory after the power supply has been cut. |
|
Even though the camera can operate in a car within a temperature range of an impressive -20 degrees c to +70 degrees c, a sensor has been built in so that the camera is shut down automatically in the eventuality that the temerature should exceed this range in either direction. |
|
The owner can optionally set a bright lightening blue LED to be switched on or off on the cameras, this is ideal for warning other road users that they are being recorded - accident prevention is always better than insurance resolution! |
|
|
|
|
|
|
|
|
|

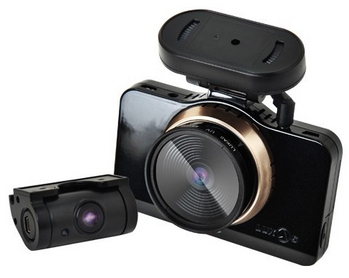

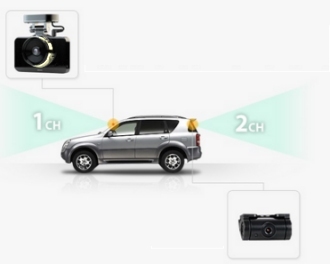

Lukas 9750 Duo Front and Rear Camera Cover. The Dual camera system comes with both front and rear cameras - these are connected together with the cable provided, and no separate power lead is required for the rear camera as it is powered by the front camera. Both cameras are activated when the ignition is switched on (under normal modes of operation).
With many dual camera sytems, the norm is to provide a lower resolution for the rearview unit than that provided on the front - this camera breaks from that standard, the rear camera records at an exceptionally high 1080p HD (24fps) with the front main camera creating full 1080p HD videos at 30fps - creating smooth clear video from both devices.
Videos are viewed via Lukas player software, provided with the package, both videos (front and rear) are shown in sychronization on the screen at the same time. (See Below Left) |
|
|
|
|
|
|
|
|
|
Camera Type |
Front : Full 1080p HD - 2.1M effective pixels - Sony IMX322 Sensor.
Rear : Full 1080p HD - 2.1M effective pixels - Sony IMX322 Sensor. |
Lens View Angle |
Front :Diagonal 135 degrees, effective H107 - V55
Back :Diagonal 130 degrees, effective H105 - V54 |
Frames and Pixels |
Front :1920x1080p full HD at 30 frames per second
Back :1920x1080p full HD at 24 frames per second |
LCD Display |
Resolution 800x480 3.97inches touch screen |
Compression |
H.264 in AVI High Codec Profile |
Gravity Sensing |
3 axis impact sensor |
GPS |
Dual Band GPS + Glonass |
Storage |
SD : SDHC or SDXC from 8GB to 256GB
MicroSD : SDHC or SDXC from 8GB to 256GB
(Comes with 16GB Main and 8GB events as standard) |
Software |
Personal media player or Lukas multi-video viewer with mapping |
Audio |
Speaker and Microphone are built in. |
Power |
DC 10V ~ 24V - Consumption 360mA (13.4v), 4.8W |
Cut-off |
Variable (by owner) time and voltage |
Operation Conditions |
Operating -20 degrees c to +70 degrees c : Storage -30 degrees c to +80 degrees c |
Dimensions |

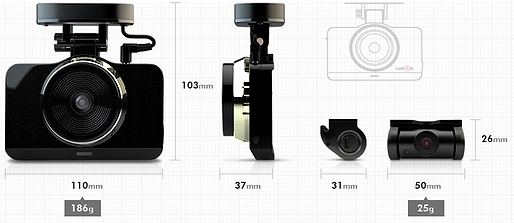

See diagram below. (F 110x103x37 mm) (F 50x26x3 mm) |
|
|
|
|
|
|
|
