LS330W Front Shot
Rear of the Unit

(Shown Above - the LS330W from the front, and the back of the camera showing the easily accessible control buttons for operation of the menu and reviewing the recordings.)

Mouse type GPS with cable and reciever

(Shown Above - The optionally fitting GPS mouse connects into the top of the camera - which can be used with or without the GPS - ideal for cars which generally have poor reception.)

Play the video clip below for further information and also some examples of the video in action.




Back to DOD Car Cameras - Back to the Car Camera Home

Features and functions of the DOD LS330W HD Car Drive Recording Camera.

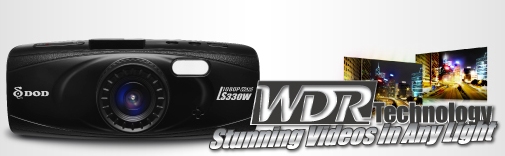

WDR Technology

WDR Technology provides well balanced exposure especially at night, where lighting conditions can change rapidly depending on roadside lighting, the headlights of other vehicles passing and the red braking lights of those infront.  Glaring light is reduced to facilitate a more evenly balanced video image.

f1.6 Aperture
Warning of Overspeed
Wide Angle
Satellite and GPS

The F1.6 large aperture allows more light onto the cameras sensor, making it super sensitive in the dark.  Easily picking up the license plate of the car in front no matter how dark it is.

If the camera is fitted with the external GPS unit, then the on-screen display will indicate when the driver is going over a certain speed limit.  The limit is entered by the owner of the camera.

With a 140 degree lens angle the camera has an excellent wide field of view.  This means that the recording will include more of the detail from around the front of the car than a standard lens.

The externally mounted "mouse" type of GPS reciever is ideal for those cars which have problems gaining a satellite signal.  The generously long connecting wire allows for the placement of the reciever where the best reception can be obtained.

Power WDR Technology creates stunning videos in any light conditions

External and Optional GPS logger with automatic time calibration/settings

Ultimate F1.6 Large Aperture additionally provides super low light performance

140 Wide View Angle Lens for extra "round the sides" detail

High Quality 6G sharp glass lens, wide view multi-layered glass

G-sensor automatic trigger for file locking and protection

HDMI high-definition video output - play on your HD television

SOS file locking function at a key press

User Password Protection

Continuous loop recording, time and date stamp on video

Sound recording on or off

Engine on - camera comes on and records - engine off - camera goes off

Supports upto 32GB Micro SD card

Technical Information for the LS330W

Image Sensor 3 Megapixel 1/3" CMOS
GPS External antenna (Option)
G-sensor 3 Axis, 4G
Lens  6G Fixed Lens
View Angle 140
Aperture Range F/#1.6
Video Resolution 1920 x 1080(30fps)
1280 x 720(60fps)
1280 x 720(30fps)
848 x 480(30fps)
640 x 480(30fps)
Video Codec H.264
File Format MOV
Connection Ports High Speed USB 2.0 / HDMI Out / AV Out
Battery 3.7V 500mAh Lithium-ion Battery
Shutter button Electronic shutter
Shutter speed 1/2 - 1/1000 second
Power Supply DC 5V 1A
External Memory Micro SDHC card(Up to 32GB)
Size 114.4(L) x 47.9(W) x 37.1(H)mm
Weight 71g
Temperature -30C ~ 80C
Humidity 20% ~ 85% -   - All Rights Reserved.
